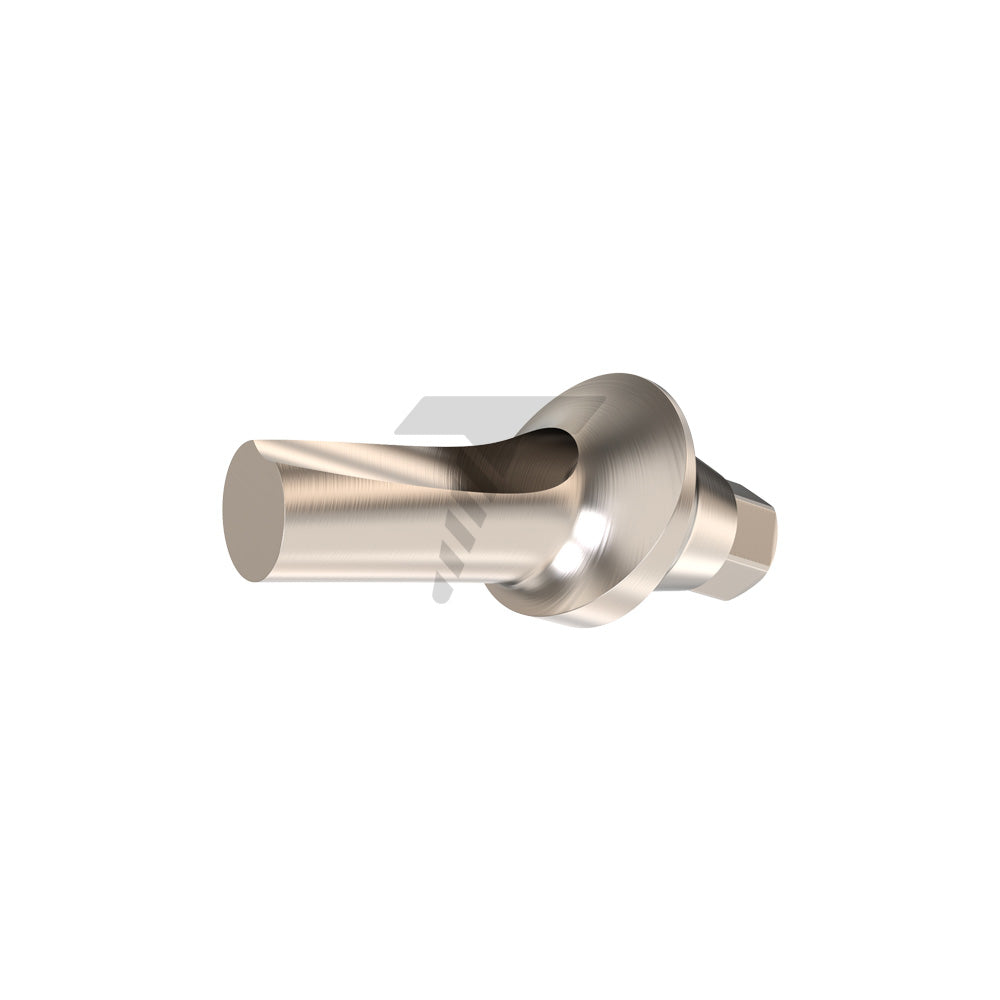

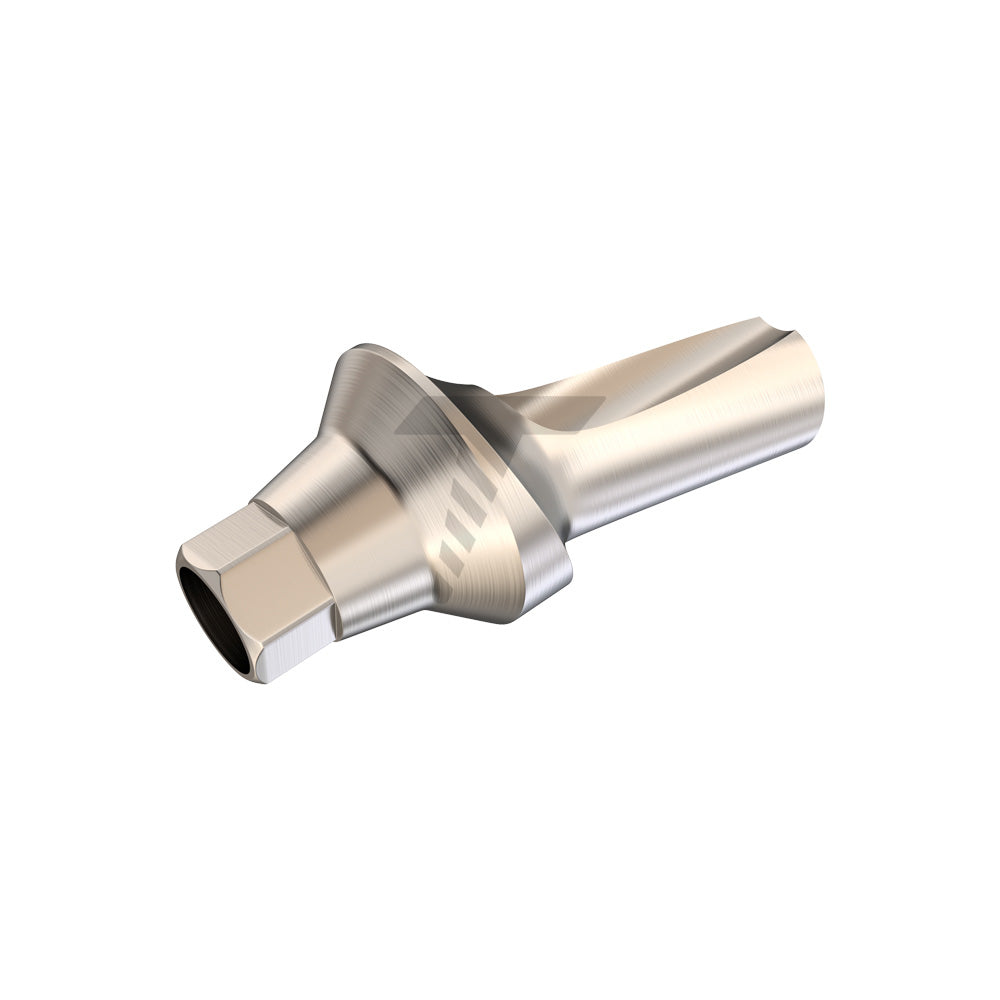

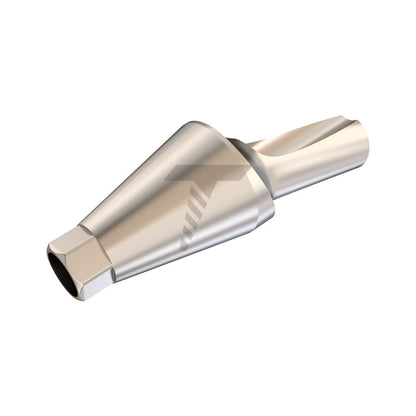

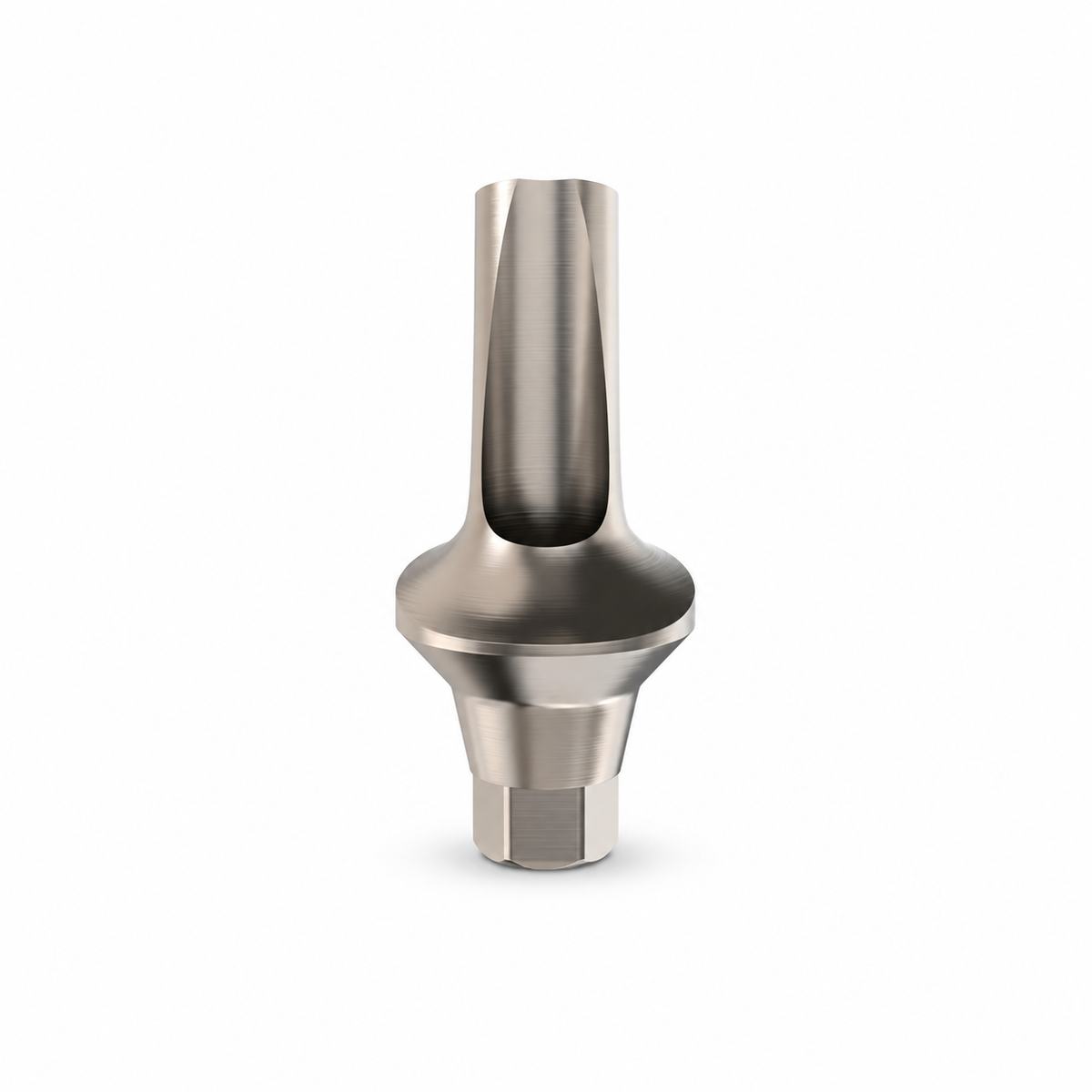

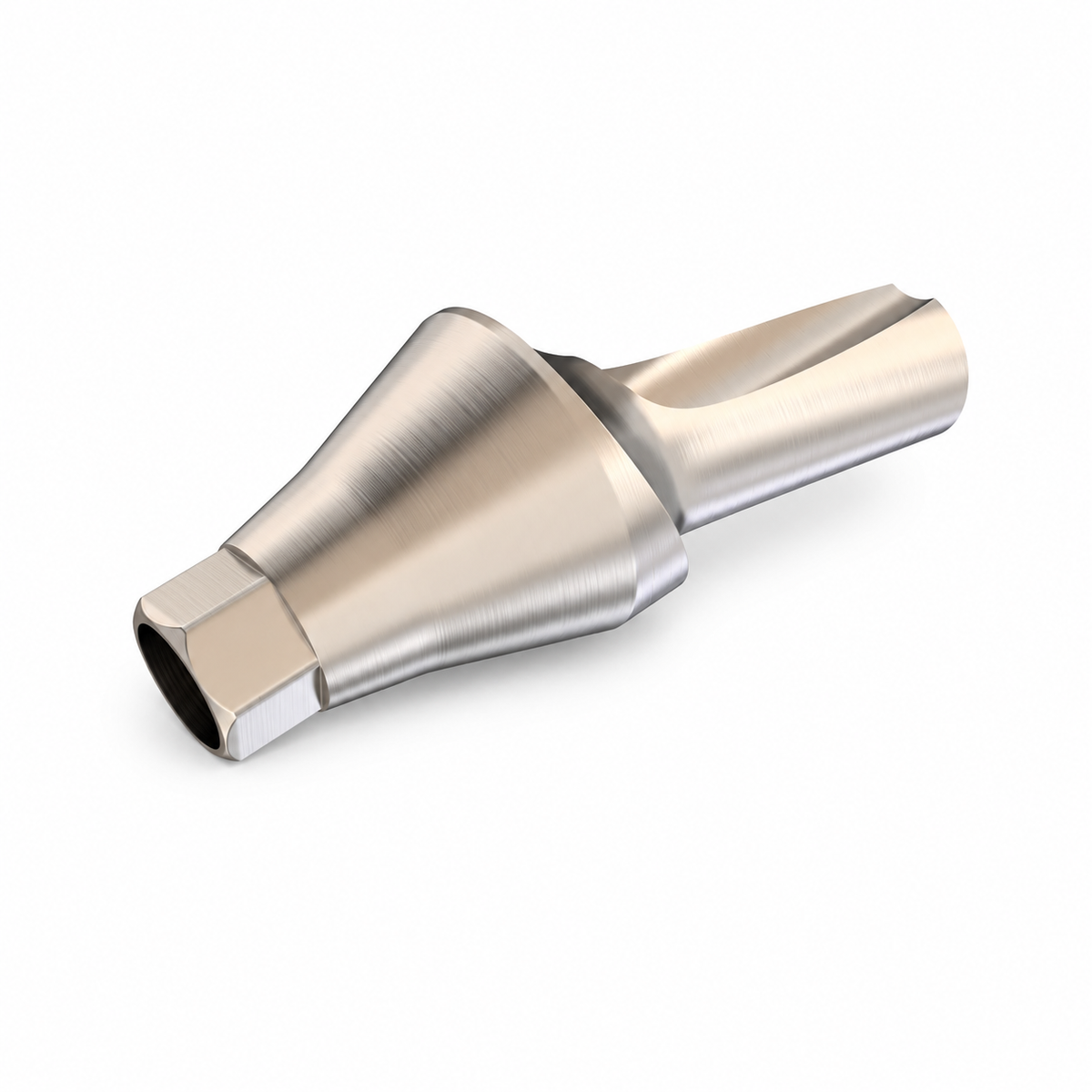

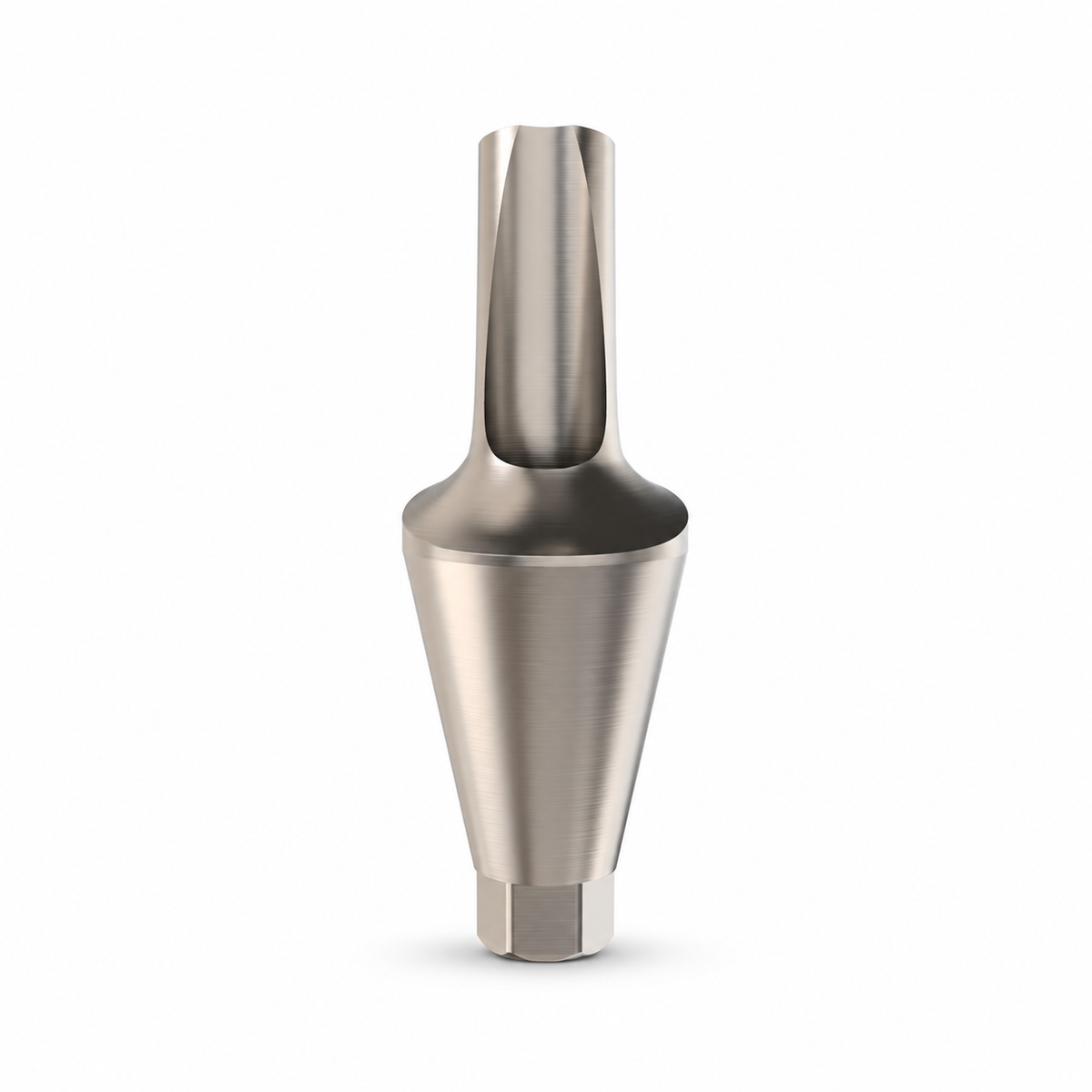

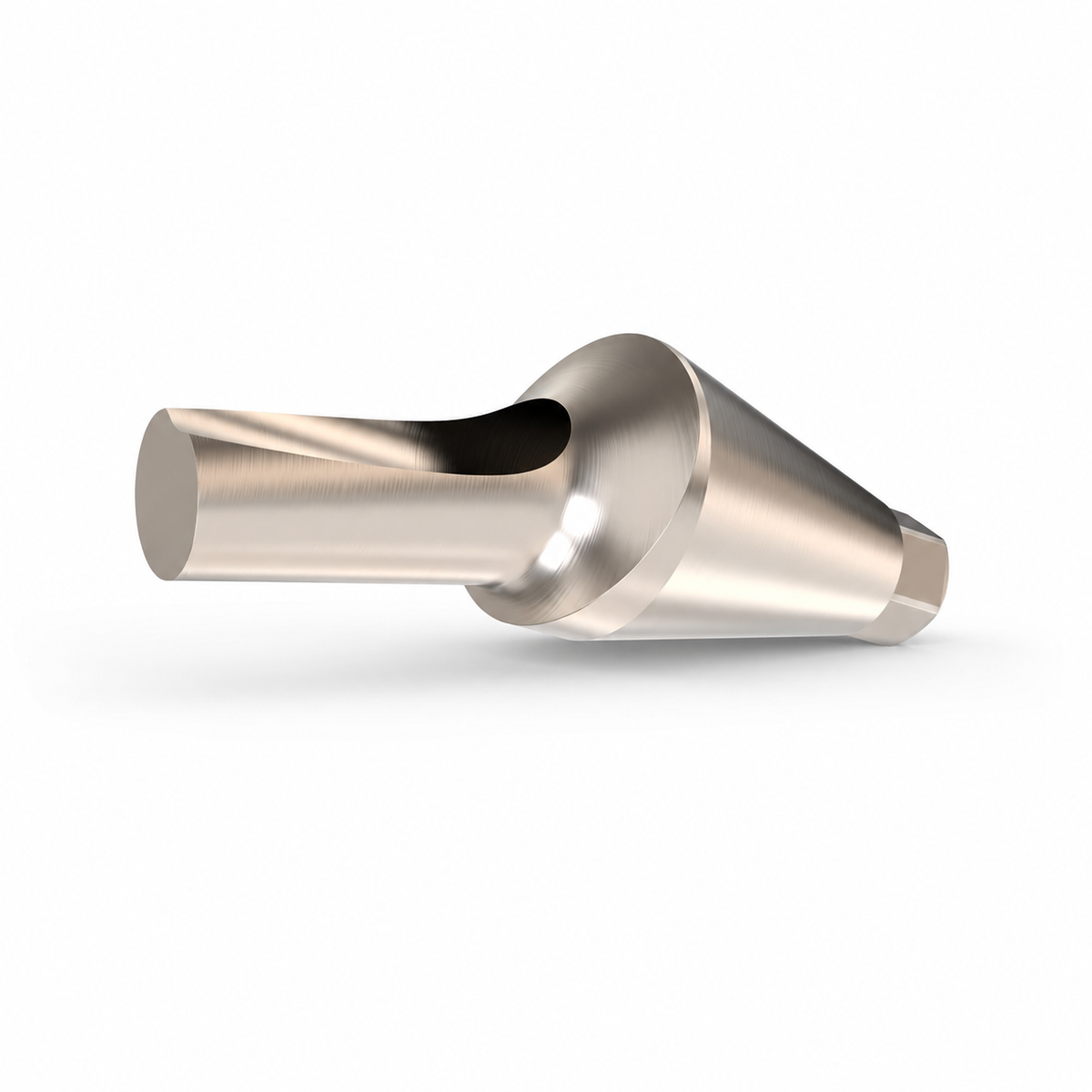

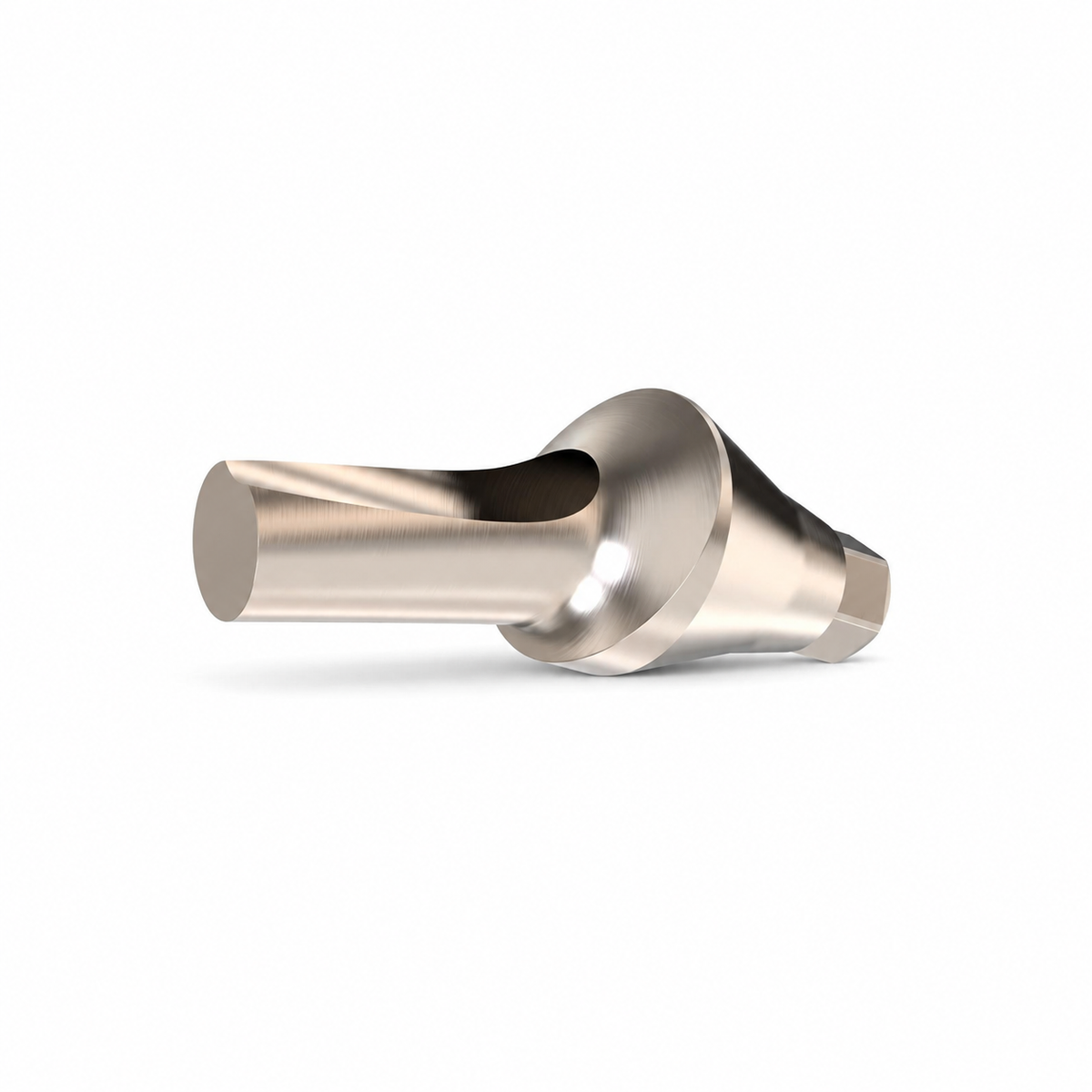

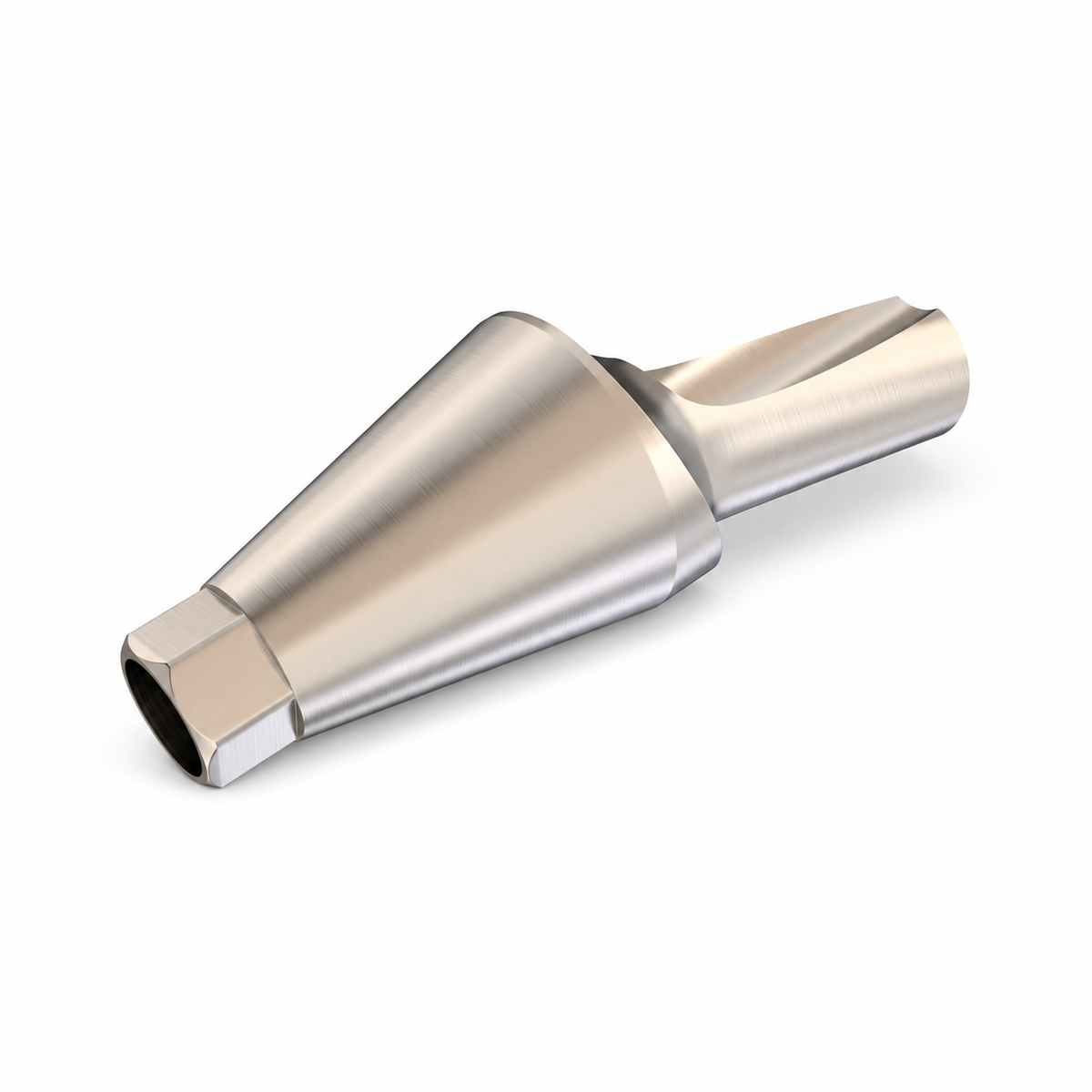

15° Anatomic Angulated Abutment – Narrow Platform Conical Connection

$25.00
Length: 1.5mm
SKU: ATA1515NP
In stock – Ships from our US warehouse 🇺🇸
FDA Approved FDA Approved
US Stock US Stock
Fast Shipping Fast Shipping
Easy Returns Easy Returns

Learn More:

PDF Icon IFU PDF Icon MSDS
Shipping & Returns
US Shipping
FREE $99+ $25 under $99
Standard, tracked.
Estimated delivery
USA: 1–5 business days
Next Day Air available (location-dependent)
Tracking & returns
Real-time tracking for all orders.
Free returns within 60 days (unopened & unused).
Ships from US warehouse
17 E Linden Ave, Unit B,
Englewood, NJ 07631
Compatibility with Dental Implant Systems
  • Internal Hex: 2.0 mm (Narrow) & 2.42 mm (Standard) – compatible with Zimmer Tapered Screw-Vent, MIS Seven (SP/WP), AB Dent Internal Hex, and more.
  • Conical Connection: 2.25 mm (Narrow) & 2.65 mm (Regular) – compatible with Nobel Active NP & RP.
Sterilization & Packaging
  • Implants: supplied sterile (gamma-irradiated) with double packaging for no-touch handling.
  • Prosthetics & screws: supplied non-sterile - sterilize in clinic before use.
Regulatory & FDA Compliance
✔ FDA Approved

All products offered in this store are FDA approved and comply with U.S. medical device regulations.

Legal notice: “FDA approved” refers to approval or clearance under the applicable FDA pathways. This confirms regulatory compliance but does not imply endorsement by the U.S. Food and Drug Administration.

Customer Support

We’re here to help – real human support.

Need assistance with orders, technical questions, or product guidance? Our US-based support team is ready to help.

Secure Payment
Length

Product Description:

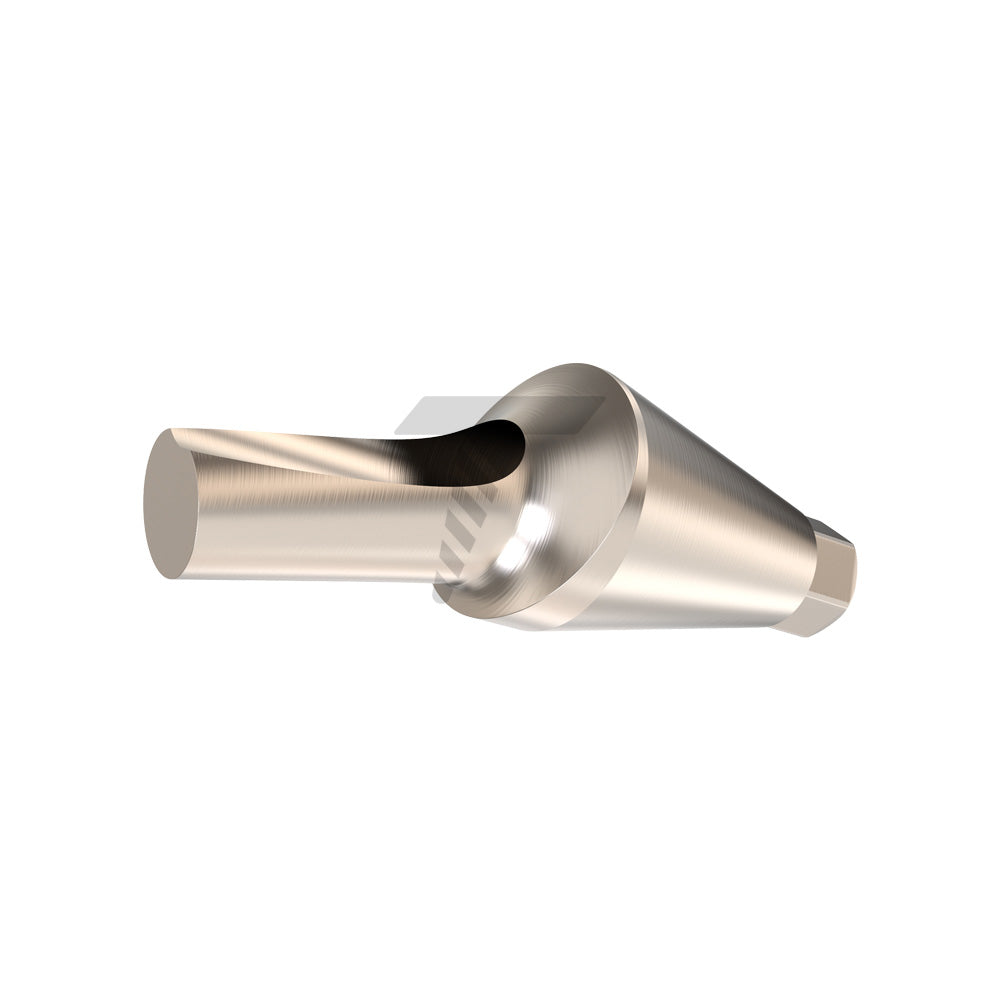

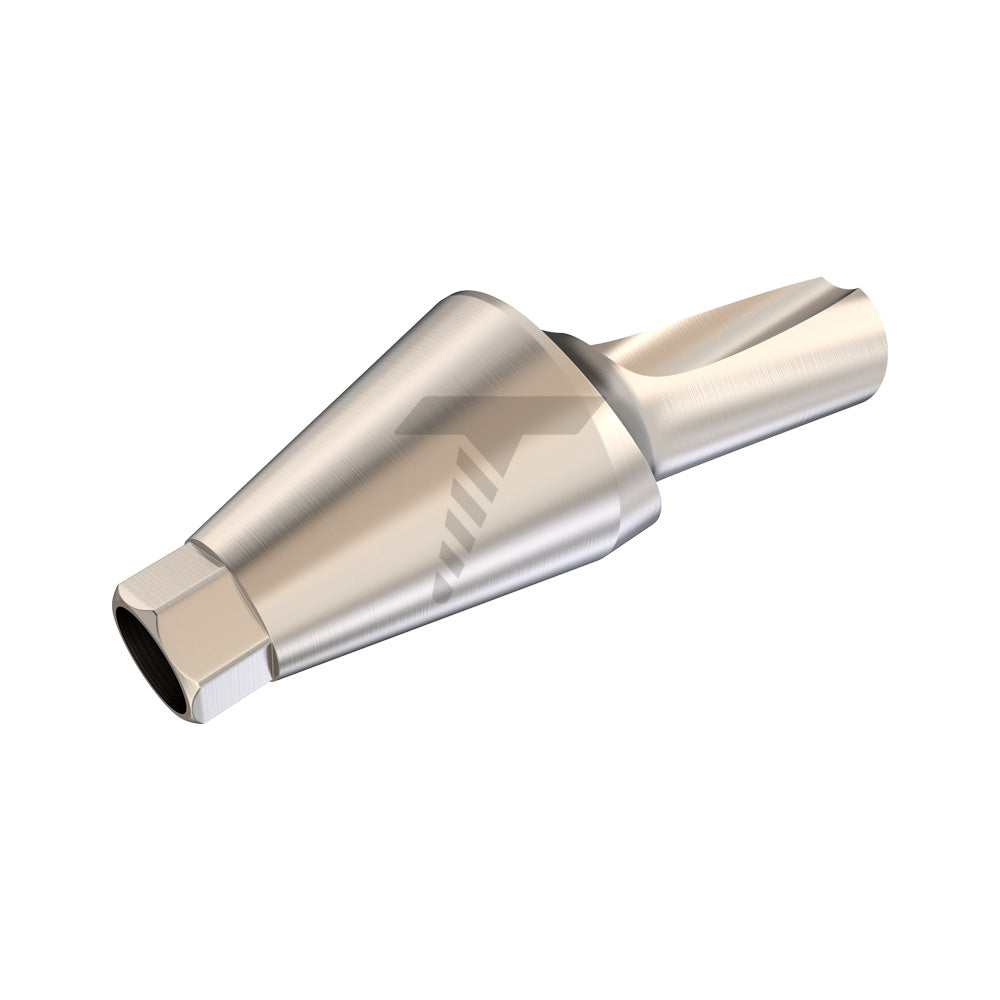

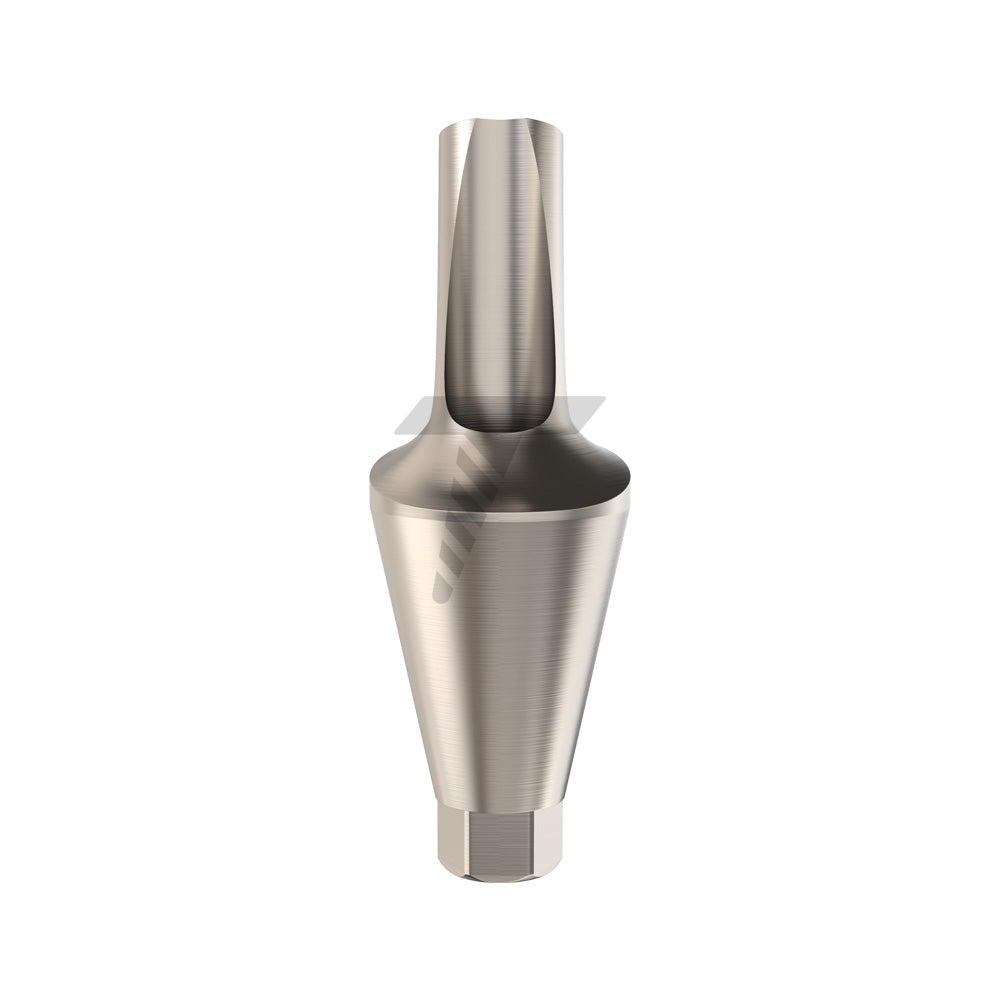

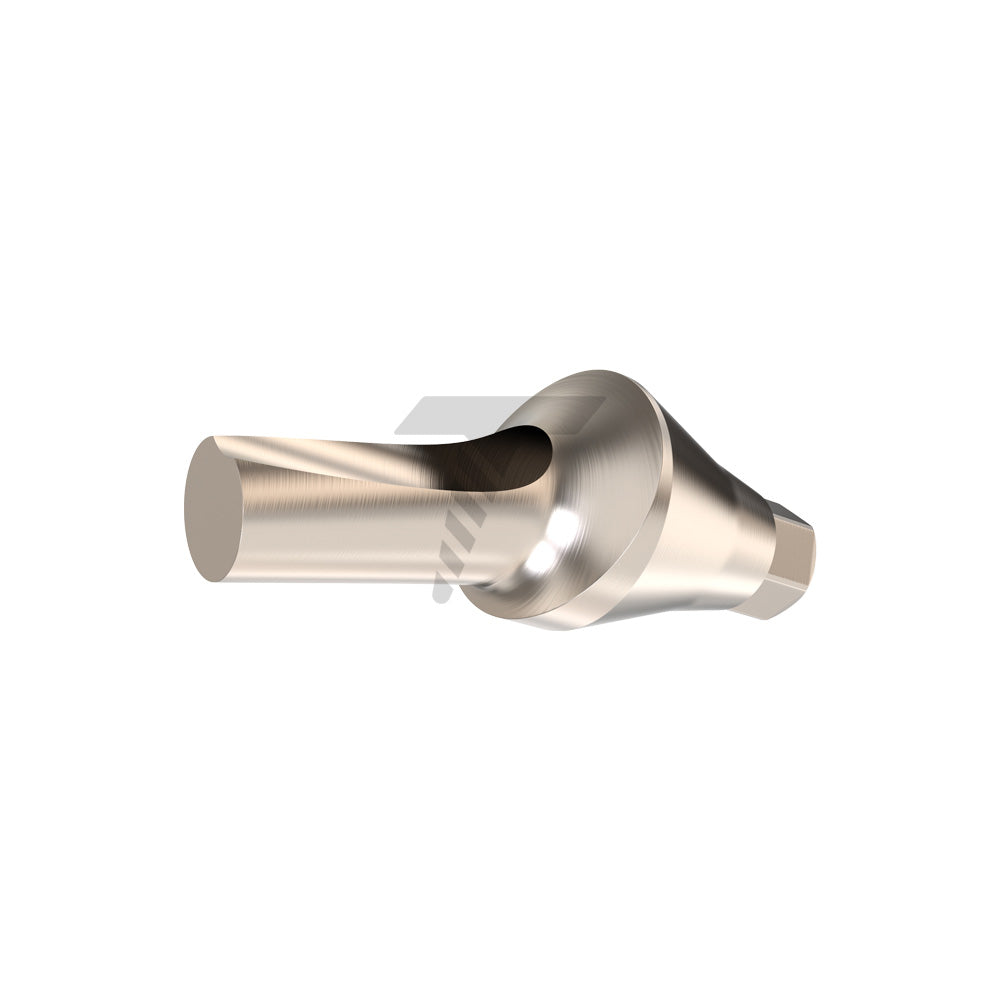

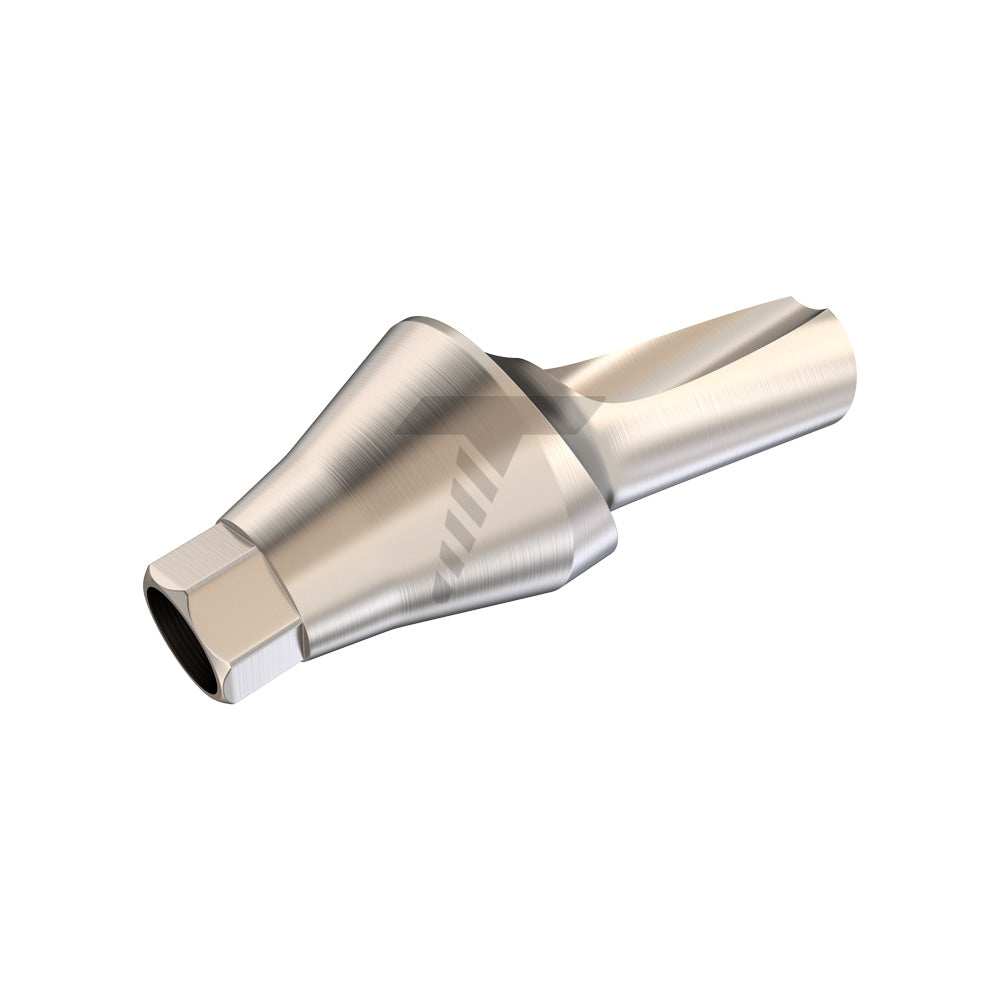

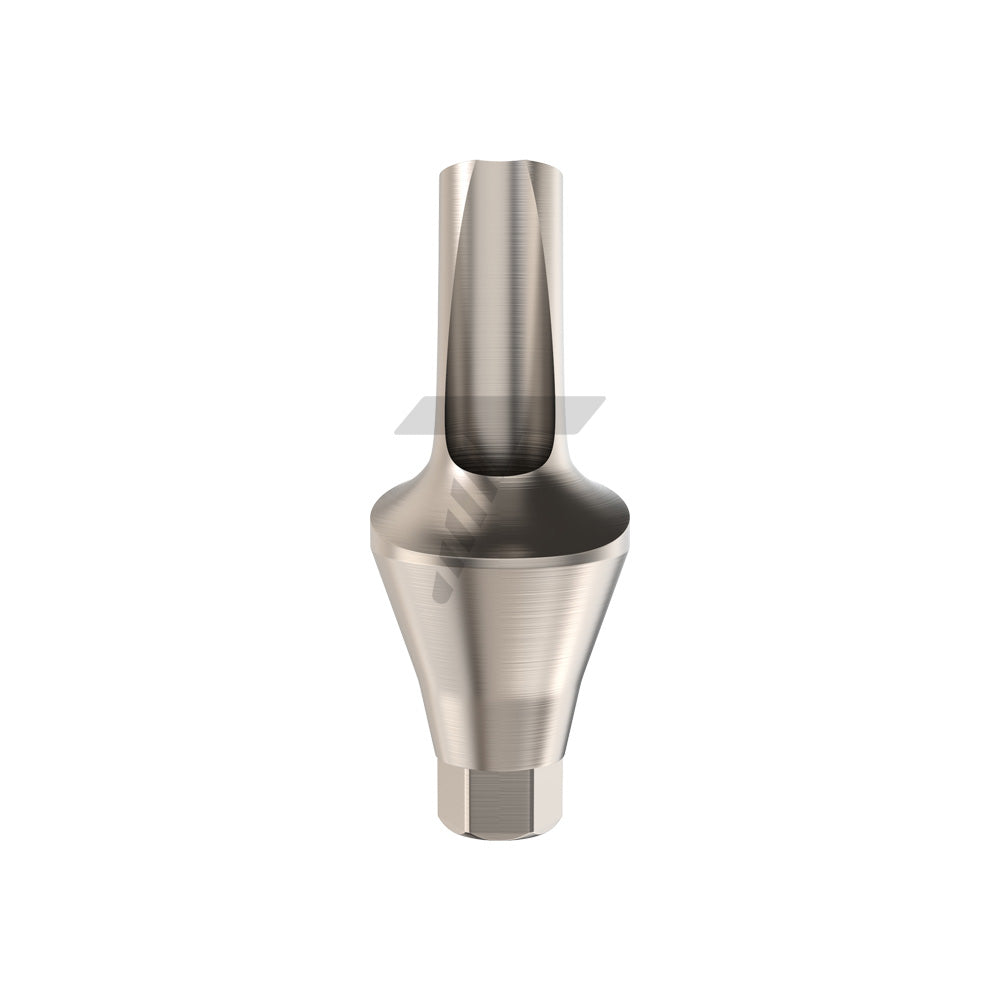

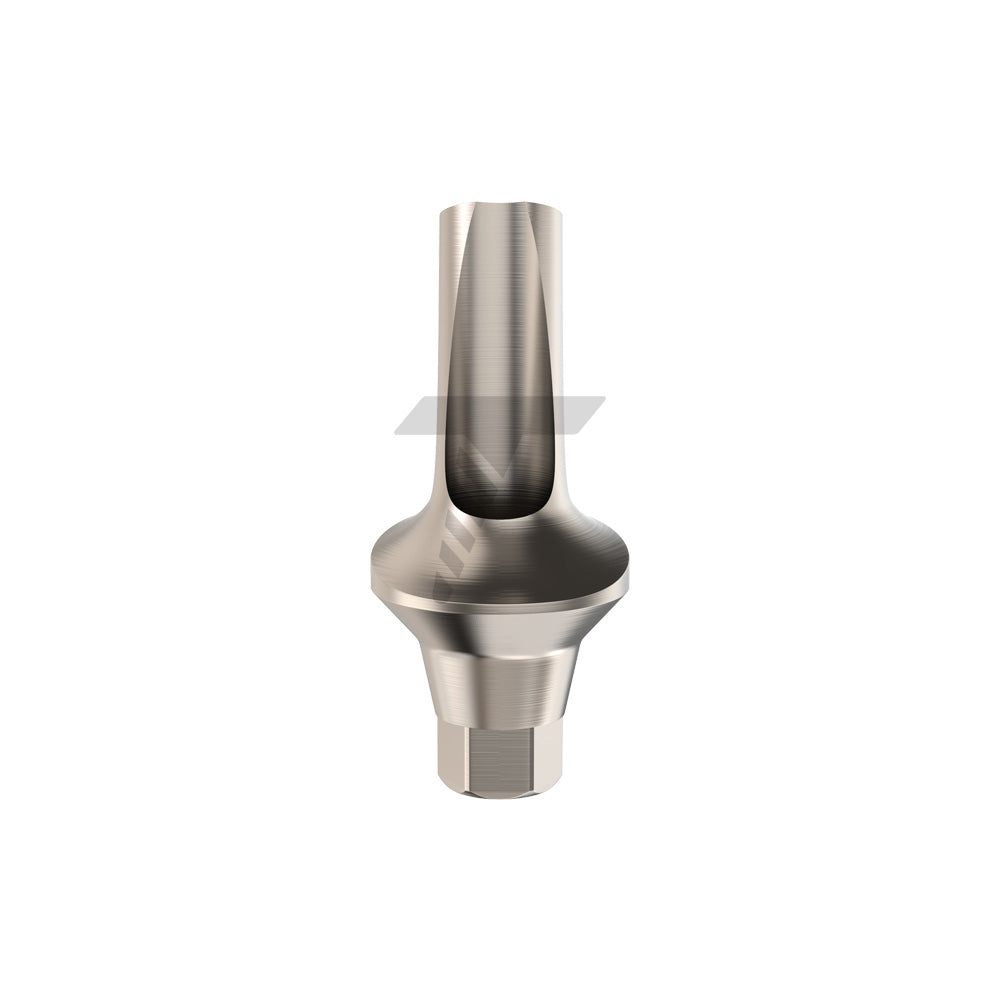

The Anatomic Angulated Abutment 15° – Narrow Platform Conical Connection is designed to achieve both functional precision and natural aesthetics in angled implant cases. Crafted from medical-grade Titanium Grade 5 (Ti-6Al-4V ELI), it provides superior strength, biocompatibility, and long-term reliability for clinical use.

Its anatomic contour promotes natural soft-tissue adaptation, ensuring a lifelike emergence profile around the final restoration. The 15° angulation enables correction of implant misalignment, allowing ideal prosthetic positioning even in challenging anterior cases. The conical connection ensures a tight seal, minimizing micromovement and bacterial infiltration while maintaining stability and predictable load distribution.

Product Specifications:

  • Material Composition: Titanium Grade 5 (TI-6AL-4V ELI)

  • Connection Type: Conical Connection Hex

  • Platform: Narrow Platform (NP)

  • Diameter: Ø5.0mm

  • Lengths: 10.0mm, 11.5mm, 13.0mm

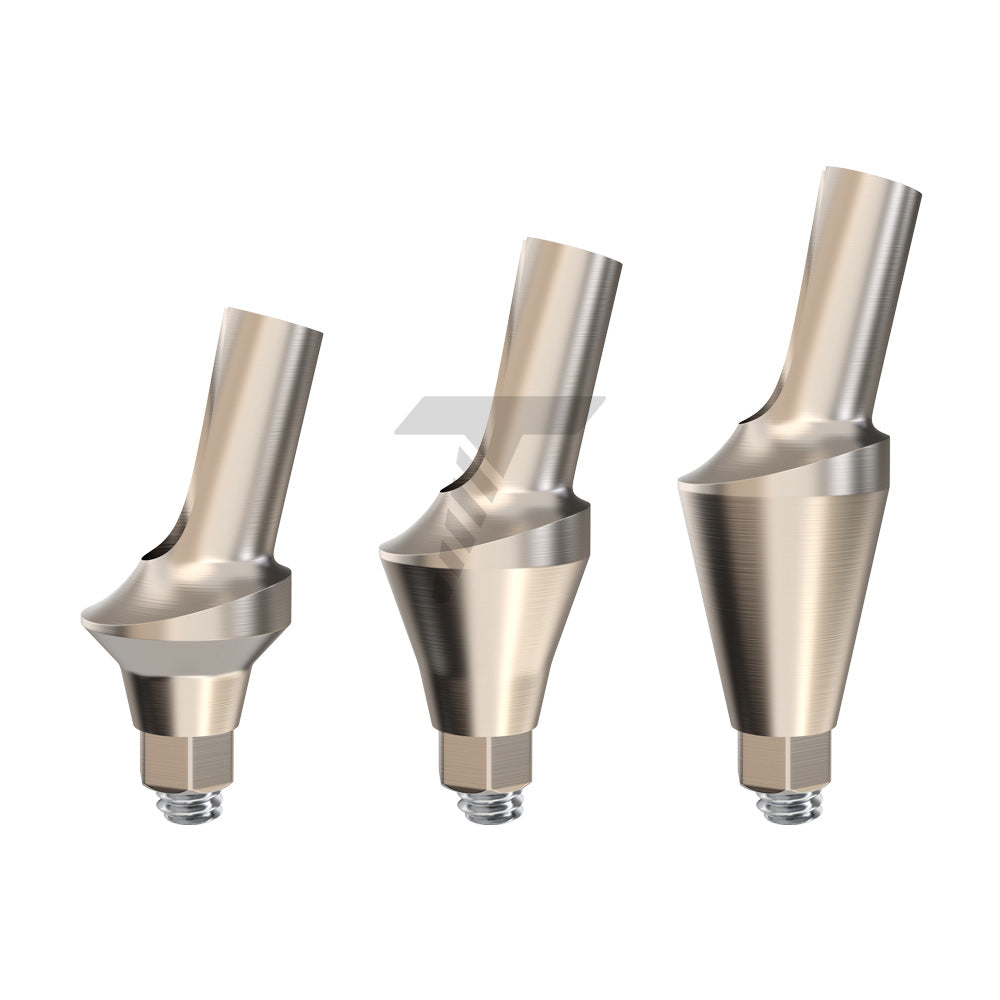

  • Anatomic Lengths: 1.5mm, 3.0mm, 4.5mm

  • Degree: 15°

  • Manufacturing Origin: Israel

✅ Titanium Fixation Screw is Included!

Key Features:

  • Enhanced Angle Correction: 15° angulation allows for ideal prosthetic positioning in challenging implant placements

  • Versatile Application: Perfect for cement-retained restorations, single crowns, or multi-unit bridges

  • Compatible with Leading Implant Systems: Designed to fit major implant brands, including Nobel Active and other compatible narrow platform implants

  • Secure Connection: Conical connection with hex provides a tight, stable fit to reduce micro-movement and ensure long-term success

Vendor GDT
Diameter 5.0mm
Length 10.0mm, 11.5mm, 13.0mm
Material Titanium Grade 5
Angulation 15°
Collar height 1.5mm, 3.0mm, 4.5mm
Connection type1 Conical Hex NP 2.25
Ifu View Now
Msds View Now
Available SKUs ATA1515NP, ATA1530NP, ATA1545NP

GDT Supply USA ensures the quality and reliability of every product. All dental implants are protected by a lifetime warranty, and all implant prosthetic components by a 10-year warranty. Each product is traceable by reference and batch number.
