Open Tray Standard Transfer Coping – Internal Hex 2.42mm
FDA Approved
US Stock
Fast Shipping
Easy Returns
IFU
Shipping & Returns
Next Day Air available (location-dependent)
Free returns within 60 days (unopened & unused).
Englewood, NJ 07631
Compatibility with Dental Implant Systems
- Internal Hex: 2.0 mm (Narrow) & 2.42 mm (Standard) – compatible with Zimmer Tapered Screw-Vent, MIS Seven (SP/WP), AB Dent Internal Hex, and more.
- Conical Connection: 2.25 mm (Narrow) & 2.65 mm (Regular) – compatible with Nobel Active NP & RP.
Sterilization & Packaging
- Implants: supplied sterile (gamma-irradiated) with double packaging for no-touch handling.
- Prosthetics & screws: supplied non-sterile - sterilize in clinic before use.
Regulatory & FDA Compliance
All products offered in this store are FDA approved and comply with U.S. medical device regulations.
Legal notice: “FDA approved” refers to approval or clearance under the applicable FDA pathways. This confirms regulatory compliance but does not imply endorsement by the U.S. Food and Drug Administration.
Customer Support
We’re here to help – real human support.
- 📞 Tel: +1 (929) 442-0773 (Mon–Fri, 9am–5pm EST)
- 💬 WhatsApp: +1 (201) 409-4104
- 📧 Email: info@gdtsupply.com
Need assistance with orders, technical questions, or product guidance? Our US-based support team is ready to help.
Product Description:

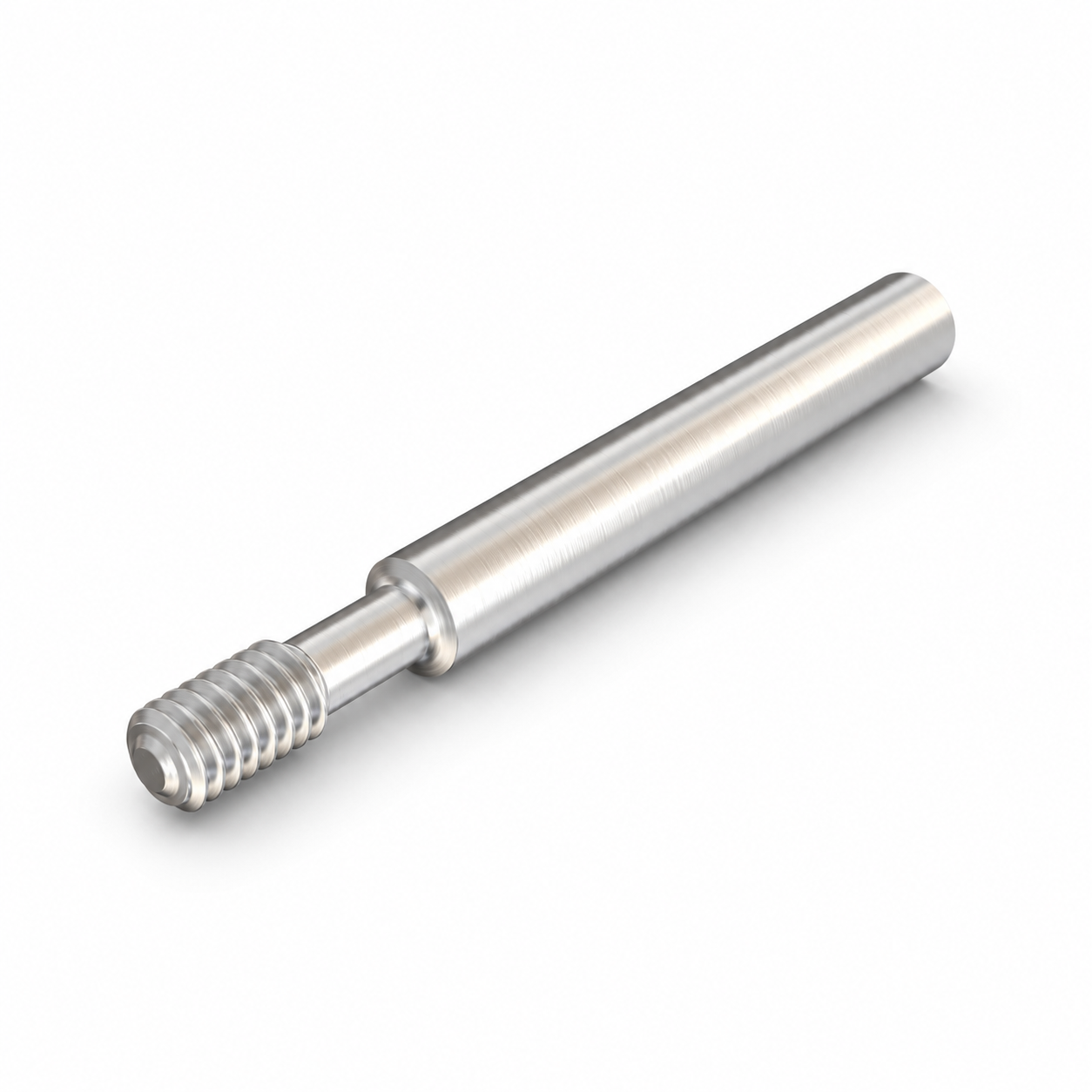

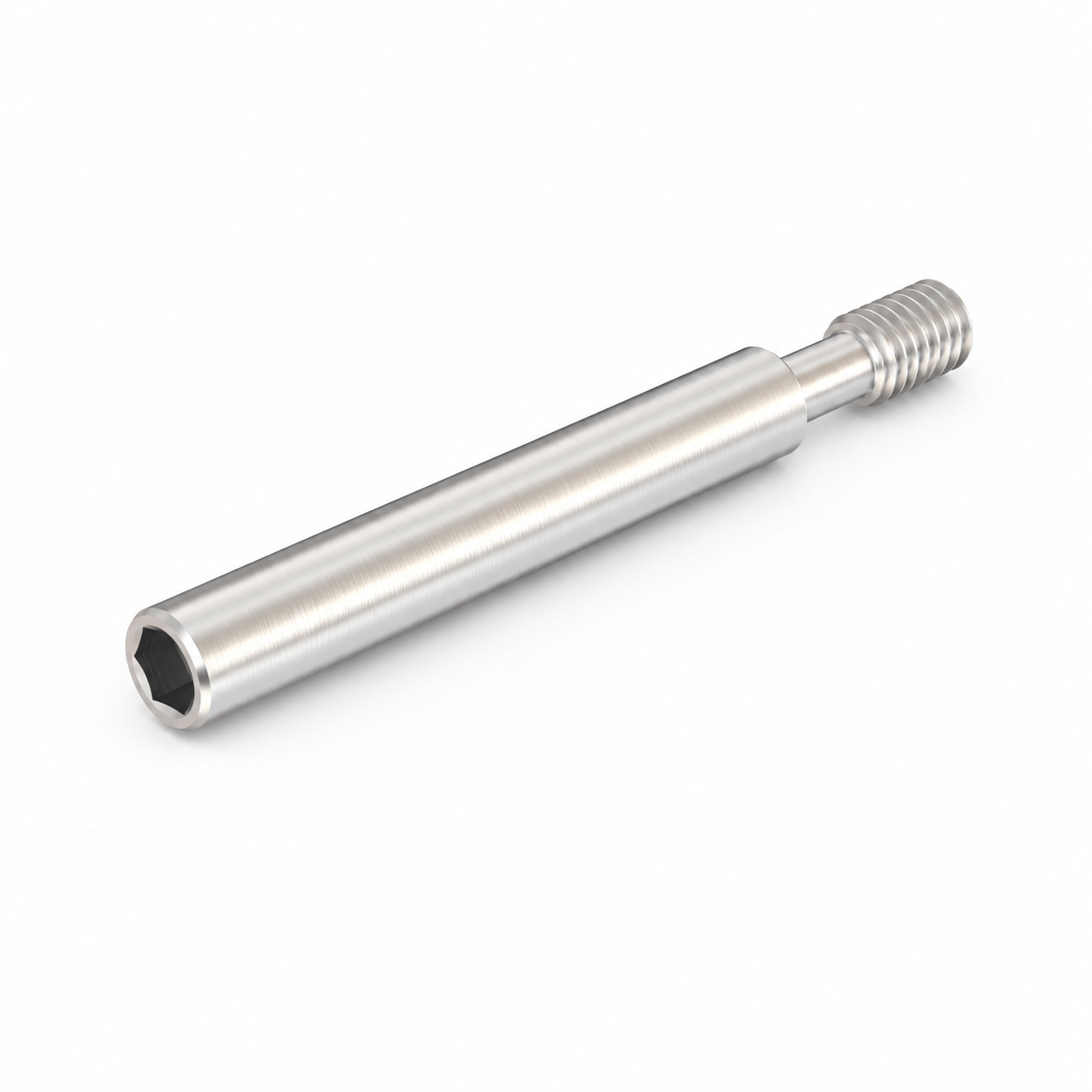

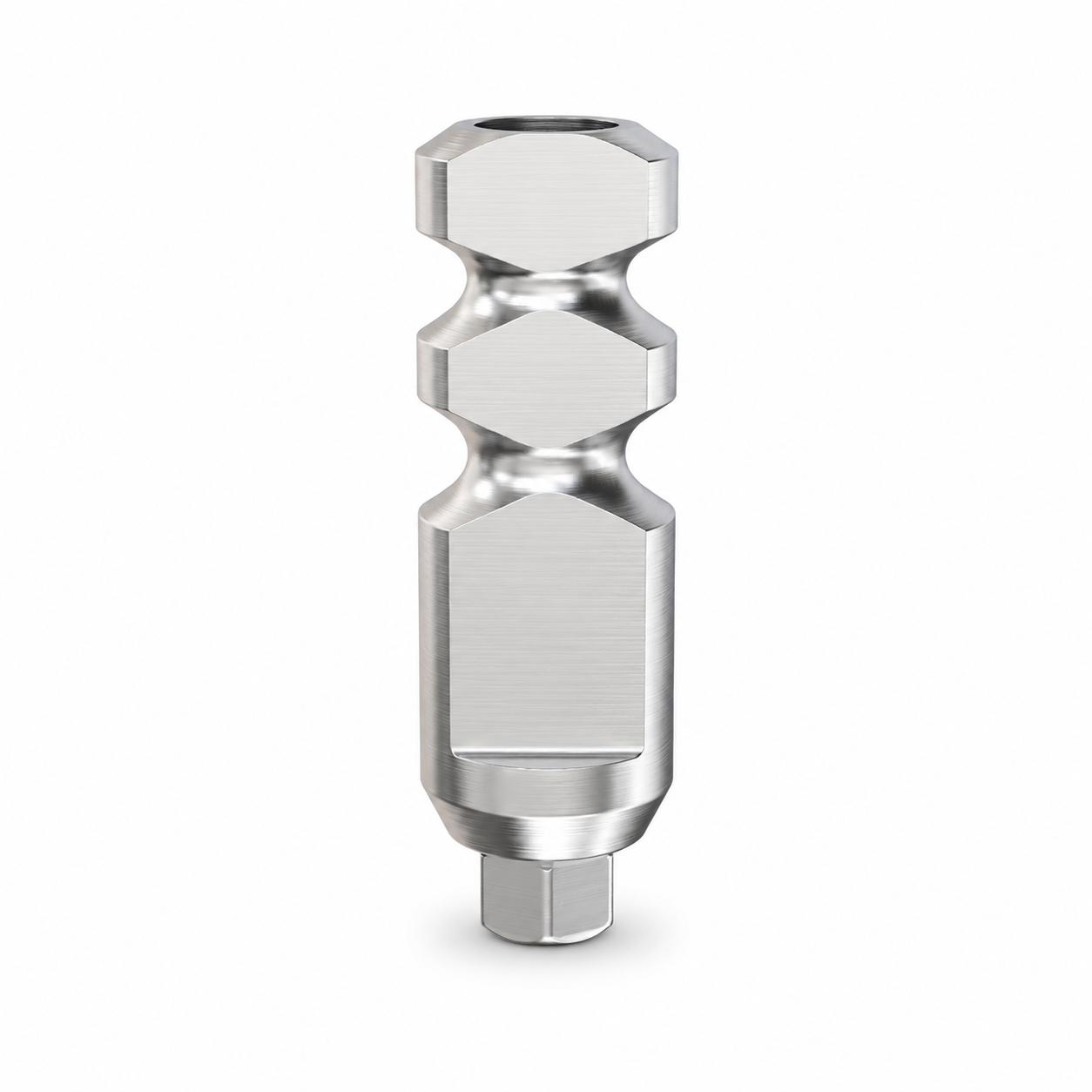

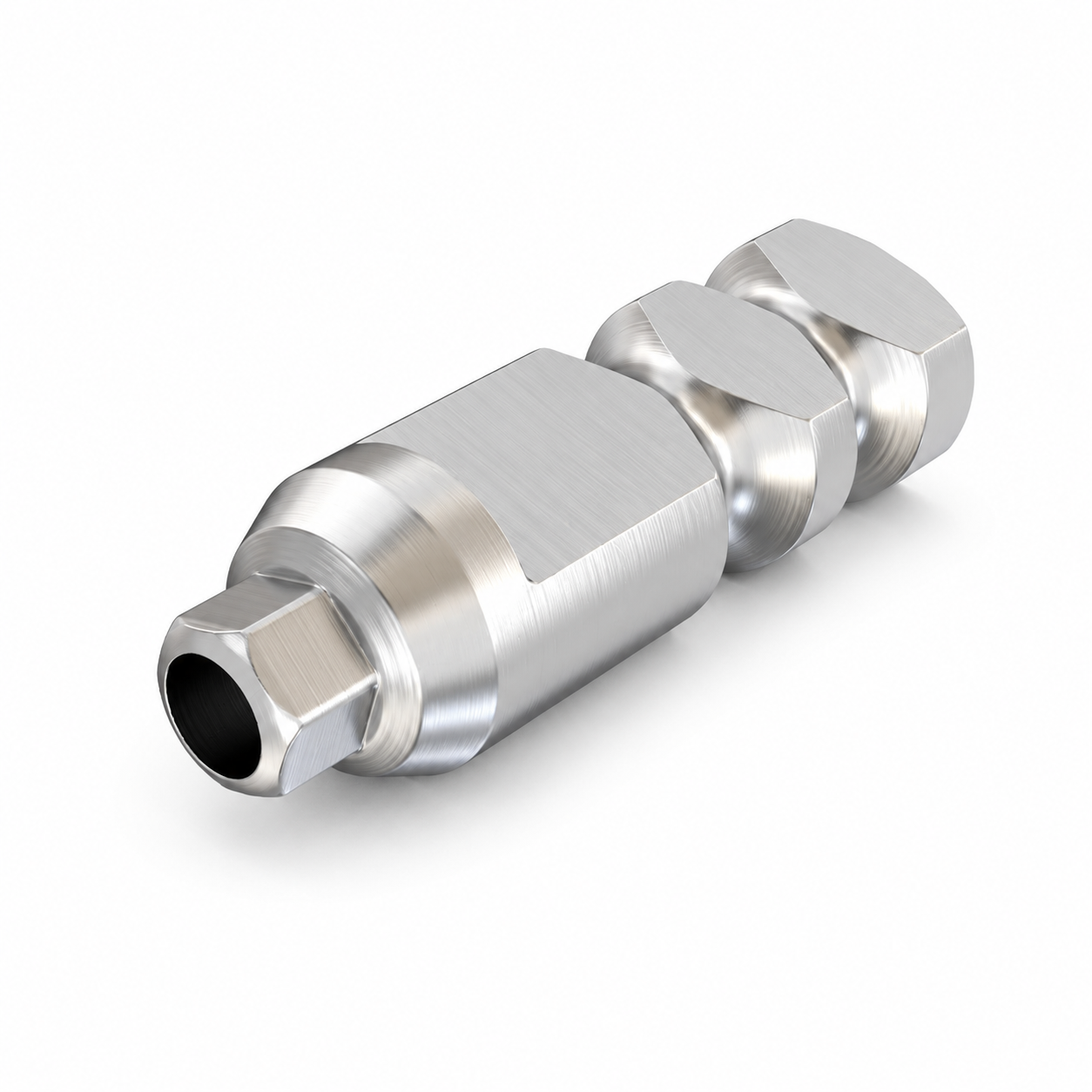

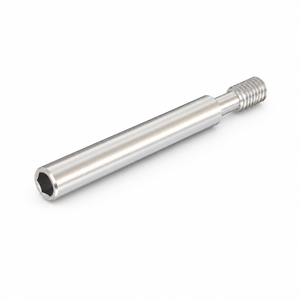

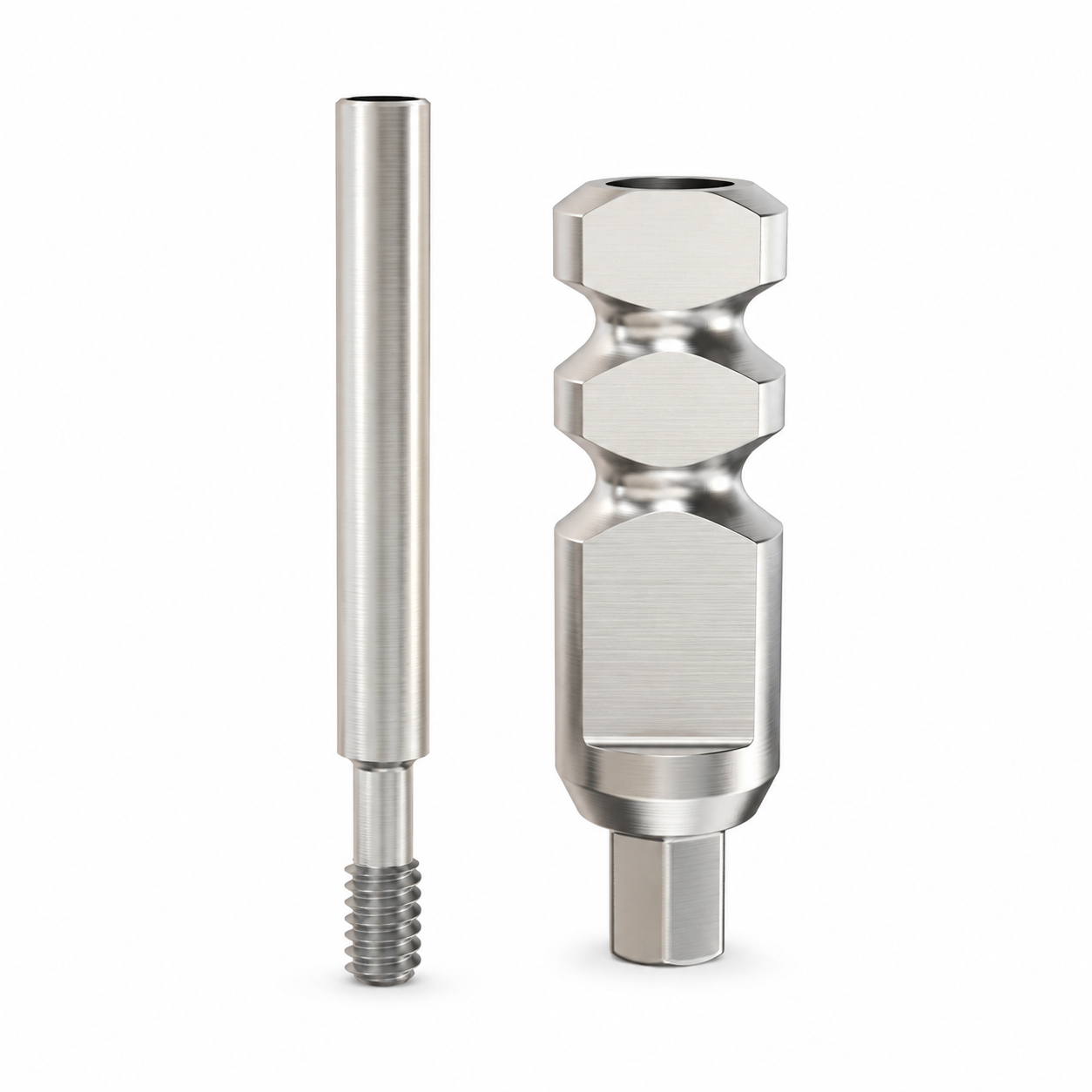

The Open Tray Standard Transfer Coping is a laboratory and clinical component used in open-tray (pick-up) impression techniques for Internal Hex 2.42 mm implant systems. Constructed from stainless steel, it provides excellent rigidity and dimensional precision, ensuring the implant’s exact position and angulation are accurately captured. The open-tray method allows direct unscrewing and removal of the coping with the impression, improving precision for single-unit and full-arch restorations.
Product Specifications:
- Material Composition: Stainless Steel
- Connection Type: Internal Hex
- Platform: Standard
- Diameter: Ø4.5mm
- Length: 13.0mm
-
Manufacturing Origin: Israel
Key Features:
- Designed for Open-Tray Impressions: Allows direct access to the screw channel during impression removal, eliminating the need for coping repositioning.
- High Dimensional Stability: Stainless steel construction ensures accuracy and repeatability even after multiple uses.
- Internal Hex 2.42 mm Connection: Compatible with standard Internal Hex implant systems, maintaining secure and stable seating.
- Ideal for Complex Restorations: Recommended for multi-unit and full-arch impressions where maximum positional accuracy is required.
- Reliable Screw Access: Facilitates controlled unscrewing and retrieval without distortion of the impression material.
- Corrosion and Wear Resistance: Smooth stainless-steel surface resists deformation and maintains long-term accuracy in clinical use.
GDT Supply USA ensures the quality and reliability of every product. All dental implants are protected by a lifetime warranty, and all implant prosthetic components by a 10-year warranty. Each product is traceable by reference and batch number.
